Lab 8 - Simple Storage Service (S3) Glacier and Elastic Beanstalk

Overview​

This week's lab will cover the following:

  • Modifying the wordpress source code to prepare it for use in Elastic Beanstalk
  • Creating a public Simple Storage Service (S3) bucket
  • Uploading files to a Simple Storage Service (S3) bucket
  • Creating a new RDS for use with Elastic Beanstalk
  • Configuring Elastic Beanstalk
  • Installing and configuring Wordpress

Investigation 1: Wordpress Source Code Modification​

Before we get into Elastic Beanstalk, we are going to set up a basic Wordpress configuration and store it in a zip file. Then we will use the AWS Simple Storage Service (S3) to create a bucket and store our Wordpress configuration in it. This will allow us to easily launch Wordpress inside the Elastic Beanstalk once the environment is set up.

Download and Unzip - Local Computer​

  1. On your local computer, download the current Wordpress source code from here: https://wordpress.org/latest.zip
  2. Unzip the file. You should end up with a wordpress directory. (Do not delete the original .zip file)

Modify Wordpress Configuration File​

Duplicate and Open Configuration File​

  1. In the local wordpress folder, find a file called: wp-config-sample.php
  2. Duplicate this file, and call it: wp-config.php
  3. Open wp-config.php in a text editor. Using a tool that supports syntax highlighting, such as Visual Studio Code, will make this easier.
    • To install VSCode in Ubuntu, open the "App Centre", search for VSCode, and "Install".

Adding Database Connector Info as Environment Variables​

In this file (wp-config.php), you will be adding database connector information as environment variables, not the actual connector information. (We'll add that information later.)

Find the following lines and add the bolded values:

  1. define('DB_NAME', getenv('DB_NAME'));
  2. define('DB_USER', getenv('DB_USER'));
  3. define('DB_PASSWORD', getenv('DB_PASSWORD'));
  4. define('DB_HOST', getenv('DB_HOST'));

Adding Authentication Unique Keys and Salts as Environment Variables​

In the same file (wp-config.php), you'll be adding the authentication keys and salts as environment variables.

Find the following lines and add the bolded values:

  1. define('AUTH_KEY', getenv('AUTH_KEY'));
  2. define('SECURE_AUTH_KEY', getenv('SECURE_AUTH_KEY'));
  3. define('LOGGED_IN_KEY', getenv('LOGGED_IN_KEY'));
  4. define('NONCE_KEY', getenv('NONCE_KEY'));
  5. define('AUTH_SALT', getenv('AUTH_SALT'));
  6. define('SECURE_AUTH_SALT', getenv('SECURE_AUTH_SALT'));
  7. define('LOGGED_IN_SALT', getenv('LOGGED_IN_SALT'));
  8. define('NONCE_SALT', getenv('NONCE_SALT'));

Image: Adding database connector information to wp-config.php. Figure 1: Adding database connector information to wp-config.php.

Confirm the values are correct and save the file.

Zip As New File and Rename - Local Computer​

Warning: Make sure you only zip the wordpress directory, not the directory with the version number.

  1. Find the wordpress folder on your local computer.
  2. Zip the entire wordpress directory, not just the files inside. (Use the zip compression protocol. Don't use something else like .rar.)
  3. Rename your new zip file: wordpress-6.7.2-modded.zip (Use whatever version the source zip file has.)

Investigation 2: Creating a Simple Storage Service (S3) Bucket​

Start your session in the Learner Lab by clicking on the Start Lab button. You are going to create an S3 bucket and upload your wordpress configuration files.

From the Console Home navigate to Storage > S3.

  • Navigate to Amazon S3
  • Click Create bucket

General configuration​

  • General purpose: selected
  • Bucket name: senecausername-wordpress

Object Ownership​

  • ACLs disabled (recommended): selected

Block Public Access settings for this bucket​

  • Block all public access: unchecked
  • I acknowledge that the current settings might result in this bucket and the objects within becoming public: checked

Bucket versioning​

  • Enable

Default encryption​

  • Accept the defaults

Bucket key​

  • Enable

Scroll down and click Create bucket

Once your bucket has created, click on your bucket's name (ie: candice-wordpress).

  • Click Upload
  • Click Add files
  • Select your wordpress-modded zip file

Make note of the Destination location: ie: s3://candice-wordpress. You will need this in the next part of this lab.

  • Click Upload

Now that we have our Wordpress config ready to go in our S3 bucket, we can move on to creating our Elastic Beanstalk environment.

Elastic Beanstalk Overview​

When you have installed Wordpress previously, you simply uploaded the source code and the first time you load the webpage, provided the database connector information. However, Elastic Beanstalk applications are meant to be disposable.

Normally, when you add that database connector info, it is saved in a file called wp-config.php on the webserver VM. This is fine for a traditional setup. However, in Elastic Beanstalk, changes made to static HTML or PHP are not saved if the Beanstalk application restarts, which it will do often. Whenever the application restarts, it will reload from the source zip file and the original, empty connector file. If you did this the traditional way, you'd have to constantly re-enter your DB connector info every time you started up your Learner Lab environment.

We could add the DB connector info to wp-config.php manually before we upload the source code, but there's a much better way.

We use environment variables to allow us to put all the info in the Elastic Beanstalk application wizard directly. That way, every time the application restarts and reloads from the source code zip, it'll then read our saved connector information from AWS itself.

Note: All other information, like the Wordpress website name, users, theme settings, blog posts, etc., are saved in the actual database you created in RDS. This database does not get reset when the Elastic Beanstalk application restarts, so your actual blog data will remain intact.

Investigation 3: Setting up an Elastic Beanstalk environment​

Creating a new database in wordpress-db​

Before we create the Elastic Beanstalk environment, we are going to add a new database to the existing wordpress-db. This new database will be used by the Elastic Beanstalk version of Wordpress that we will be setting up.

Login to your www instance, and issue the following command to connect to your database. Substitute the credentials you wrote down in lab 7.

mysql -u admin -h **endpoint** -p

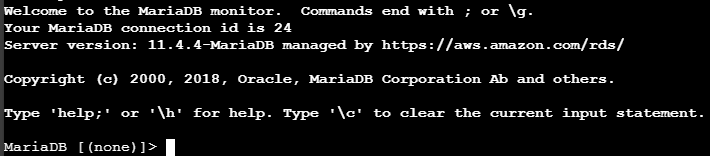

Enter your Master password when prompted. You should see the following screen indicating a successful connection.

MariaDB connected

Issue the following command to display the databases.

show databases;

You should see the "wordpress" database your created in lab 7. Now lets add another.

Issue the following commands:

create database ebwordpress;
show databases;

You should see the new "ebwordpress" database listed along with the old "wordpress" database.

Disconnect from the database.

quit;

Now we can move on to creating our Elastic Beanstalk environment.

Creating the Elastic Beanstalk environment​

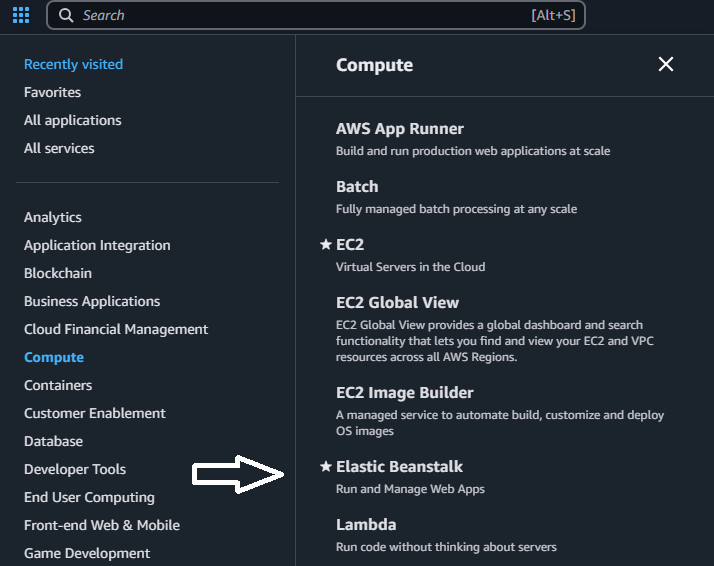

Navigate to Compute > Elastic Beanstalk. See the following screenshot for reference.

Elastic Beanstalk

Click Create application, and use the following settings:

Environment Tier​

Select: Web server environment

Application information​

  1. Application name: wordpress

Environment information​

  1. Environment name: Wordpress-env

Platform​

  1. Platform: PHP
  2. Platform branch: PHP 8.4 (or current latest)
  3. Application code: Upload your code
  4. Version label: wordpress-6.7.2 (Use the version from your zip filename)
  5. Public S3 URL: https://username-wordpress.s3.us-east-1.amazonaws.com/wordpress-6.8.1-modded.zip (Where username is your Seneca username and the zip file is the one you uploaded)

Presets​

  1. Presets: Single instance (free tier eligible)

Click next

Configure Service Access​

Select: Use an existing service role

  1. Service role: LabRole
  2. EC2 instance profile: LabInstanceProfile
  3. EC2 key pair: vockey

Click next

Set up networking, database and tags​

  1. VPC: Wordpress VPC

Instance Settings​

  1. Public IP address: Subnet Default
  2. Instance subnets: Public Subnet 1, Public Subnet 2 (both checked)

Database​

  1. Click Enable database
  2. Database subnets: Private Subnet 1, Private Subnet 2 (both checked)

Database settings​

  1. Username: admin
  2. Password: Your database password

Click next

Configure instance traffic and scaling​

  1. EC2 Security Groups: Wordpress Website SG & Wordpress Database SG (both checked)
  2. Leave the rest default

Click next

Configure updates, monitoring and logging​

Monitoring​

  1. System: Basic

Managed platform updates​

  1. Managed updates: Unchecked

Email notifications​

  1. Email notification: Add your Seneca email

Platform Software​

Before beginning this section, you will need two things:

  1. Your database connector information (you saved this, right?)
  2. Randomly generated auth keys and salts from here: https://api.wordpress.org/secret-key/1.1/salt/ (it's a good idea to save these in a text file, too)

Container Options​

  1. Proxy server: Apache
  2. Document root: /wordpress
  3. Click Add environment property and add the following Environment properties
    1. DB_HOST: your RDS database URL
    2. DB_NAME: ebwordpress (MAKE SURE YOU USE "ebwordpress" here and not the old database "wordpress" from lab 7)
    3. DB_USER: admin
    4. DB_PASSWORD: your auto-generated database password
    5. AUTH_KEY: (use gathered info from salt page)
    6. SECURE_AUTH_KEY: (use gathered info from salt page)
    7. LOGGED_IN_KEY: (use gathered info from salt page)
    8. NONCE_KEY: (use gathered info from salt page)
    9. AUTH_SALT: (use gathered info from salt page)
    10. SECURE_AUTH_SALT: (use gathered info from salt page)
    11. LOGGED_IN_SALT: (use gathered info from salt page)
    12. NONCE_SALT: (use gathered info from salt page)

Note: None of these values should have single quotes in them. (i.e. ')

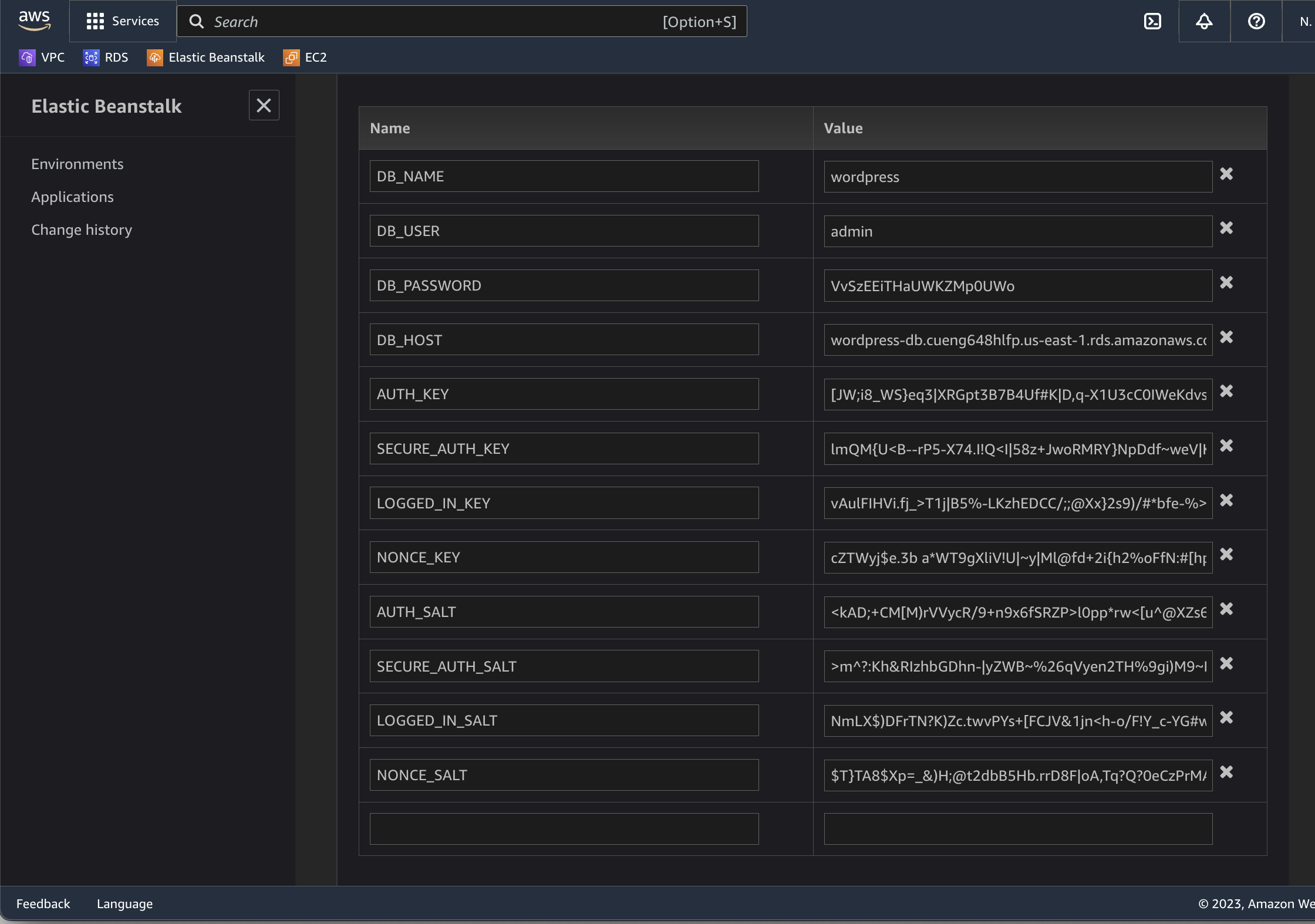

Image: Adding database connector information, auth keys and salts to your Elastic Beanstalk application as static Environment Variables. Figure 2: Adding database connector information, auth keys and salts to your Elastic Beanstalk application as static Environment Variables. Note that this image is just an example. Your values other than those for DB_HOST and DB_NAME will be different.

Click next.

Review options​

Review all settings and ensure they match the instructions above. Once you hit Create, the application will take several minutes to create.

Create the application.​

click Submit when ready.

While you wait for the creation to complete, check your e-mail to confirm your notification subscription.

If your application fails to build, double check your wp-config.php configuration file for syntax errors. Additionally, make sure when you rezipped the file you only select the wordpress folder, not the main folder.

Investigation 5: Accessing Wordpress​

When the environment successfully launches (the blue bar at the top of the screen turns green) you are ready to go.

Open the URL listed under "Domain" on the Wordpress-env screen (Wordpress-env.something.us-east-1.elasticbeanstalk.com) and begin the site setup.

Site Information​

Set the following site information:

  1. Site Title: Your name's blog
  2. Username: yourSenecaUsername
  3. Password: Choose a strong password (do not reuse the DB password!)
  4. Your Email: yourSenecaEmailAddress
  5. Search engine visibility: Unchecked

If you get a message indicating a failure to connect, make sure you zipped the wordpress folder and it's contents only. You can rezip the file and click Upload and deploy if necessary.

Blog Post:​

Add a blog post detailing the following:

  • What did you think of this lab?
  • What was the most difficult part for you?
  • What was the easiest part for you?

Lab 8 Sign-Off (Show Instructor)​

Take screenshots showing the following and organize them nicely into a single document:

  • Your S3 bucket with your wordpress zip file in it
  • Your blog post (including the URL in the browser)

Make sure you label your screenshots!

If you are not moving directly into Assignment 2 upon completion of this lab you will want to temporarily stop your database to avoid accruing unnecessary cost.

To do this:

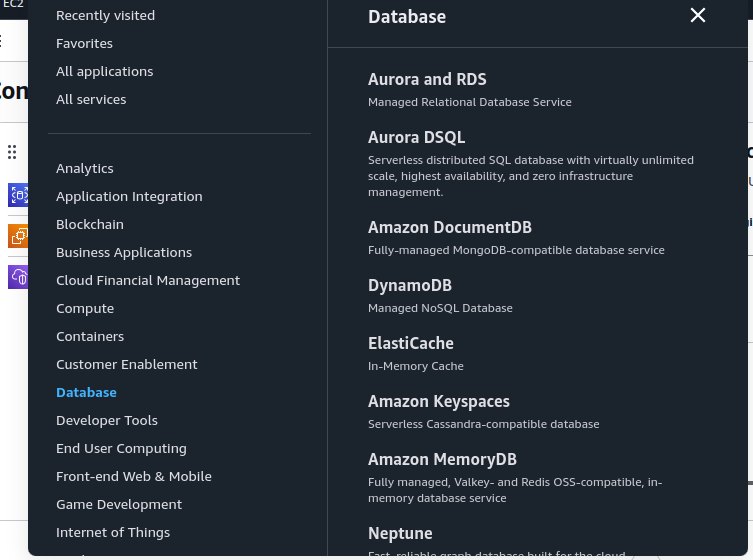

  • Navigate to Aurora and RDS > Databases.
  • Select the radio button beside wordpress-db
  • Click on Actions > Stop temporarily

This will shutdown your database for 7 days and pause billing. You will need to repeat this every 7 days or until you have completed Assignment 2.

Do not delete the database yet. You will need it to complete Assignment 2.

Exploration Questions​

  1. What is S3?
  2. Describe the process of creating an S3 bucket as outlined in the lab instructions.
  3. What is Elastic Beanstalk?
  4. How is this lab similar to the wordpress install in Lab 6/7? How is it different?
